SPECIAL FEATURES

HYPO ROTARY GEAR PUMPS

Mounting : HYPO pump have Foot and Flange Mountings These can be directly Foot Mounted or Flanged Mounted without any extra fittings or fixtures.
Port Connections : The inlet outlet connections of the pumps up to 2" size are I.E.. Screwed, and above 2" size have flange Connections.
Relief Valve : Built-in-Pressure Relief Valve up to 40 Kg/cm2
Pump Drives : Pumps coupled to T.E.F.C. Electric Motors and Horizontally or vertically mounted on common base with flexible couplings and guards are available in all models. Pumping sets with Explosion / Flameproof motors are  also available. Pump sets Driven by V-Belts or Reduction Gear Unit for Specific Application are also Supplied.
Mounting : HYPO pump have Foot and Flange Mountings These can be directly Foot Mounted or Flanged Mounted without any extra fittings or fixtures.
Port Connections : The inlet outlet connections of the pumps upto 2" size are B.S.P. Screwed, and above 2" size have flange Connections.
Relief Valve : Built-in-Pressure Relief Valve upto 40 Kg/cm2
Pump Drives : Pumps coupled to T.E.F.C. Electric Motors and Horizontaly or vertically mounted on common base with flexible couplings and guards are available in all models. Pumping sets with Explosion / Flameproof motors are  also available. Pump sets Driven by V-Belts or Reduction Gear Unit for Specific Application are also Supplied.

                            CONSTRUCTION
Body & Covers : They are made from high grade close grain cast iron casting grade IS. 20 and are hydraustatically tested at twice the working pressure.
Gear & Shaft : The gears are double helical or spur. The gears & Shafts are made from EN-8 Steel in Standard Pumps and from EN-24 Hardened and lapped in Special Pumps.
Bearings : Ball / Roller  Bearings are Provided in all the Pumps. Bush Bearings can be providede for specific Liquids
Seals : (1) Neoprene Oil Seals are Provided in all Standard Pumps. (2) Gland Pickings Can be provided for hot and abrasive liquids. (3) Mechanical seals are provided in place of Neoprene Oils seals or gland packing for specific applications.
Shop Test : All Pump pass through close Quality Control and shop tested  for their Capacity and Pressure Before the are dispatched. Routine shop tests certificates for capacity, Pressure and power consumption are furnished on request.


Transfer Gear Pumps

Pump Coupled with Motor and mounted on a Common Base Frame with Guard & Couplings.
Capacity: Up to 6000 I.E..
Pressure Up to 20 Kg / cm2

Hydraulic Pumps

Capacity:  Up to 125 L.P.M.
Pressure: Up to 100 Kg / Cm2

Reversible / Bi-directional Pumps

Capacity: Up to 75 L.P.M.
R.P.M. 100 to 1440
Reversible Gear Pump : ( Unidirectional Flow) These Pumps Give  Delivery Of  Liquid in One Direction Even Though the rotations of the Pumps are either clockwise or anticlockwise. They are versatile for the Lubrication of Machine Tools Cranes, Gear Boxes etc.

APPLICATIONS

HYPO Rotary Gear Pumps have been grouped in there groups of low Medium and High Pressure Pumps in pressure range.

Group-A (Low Pressure) : The Multi-purpose Rotary Transfer Gear Pumps : This series consists of pumps to handle the viscous liquids such as Fuel Oils, Lubricating Oils, Paints, Varnish, Molasses, Soaps, Asphalts, etc and are also used in filter Presses, Chemical and Pharmaceutical Industries, Canning & Dairy Industries.

Capacity :

Up to 6000 L.P.M.

Pressure

0 to 20 Kg Cm2

Size :

6 mm to 300 mm (1/4 to 12")

Group-B (Medium Pressure) : Rotary Gear Pumps Under this series are best for Oil Fired Boilers & Furnaces, Machine Tools Lubrication.

Capacity :

Up to 125 L.P.M.

Pressure :

20 to 40 Kg/Cm2

 Size :

6 mm to 40 mm (1/4"to 1 1/2")

Group-C ( High Pressure) : These are Hydraulic Pumps for Machine Tools, Hydraulic Pressure Injection  Moulding Machines & Dumpers, Bull Dozers, Tractors, Fork Lift Trucks etc.

Capacity

Up to 125 L.P.M

Pressure :

40 to 100 Kg/Cm2

Size :

5 mm to 40 mm (1/4"to 1 1/2")

for your specific requirement and for our recommendation please fill up / download the
 QUESTIONNAIRE

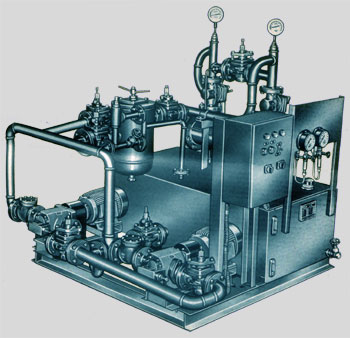

Oil Lubrication Systems

HYPO Oil lubrication Systems are designed to suit individual customer requirement with every perfection of engineering skill to meet trouble free & reliable service.

HYPO Oil Lubrication Systems are compact in size contain Oil Pump to delivery specified volume of oil at constant rate, Self Cleaning or Basket Filters to send clean oil constant. All these with order necessary instrumentation for controlling, checking devices like Pressure Gauges, Thermometers, Temperature Switch, Hooter to keep watch on various important working parameters. It can also be equipped with stand -b pump to operate on failure of the main pump, stand -by Filter, Oil Cooler  & other automation can be incorporated as per importance of lubrication applications. These all components are scientifically fitted over the oil Tank.

HYPO Oil Lubrication Systems are designed after years of experience in Hydraulic Engineering. Reputed brand and tested bought out components are used to manufacture the systems, Hence , a little higher installing cost appear initially but, resulting in trouble free safety & economical  in long run.

HYPO Oil Lubrication Systems are giving round the clock service in various Industries at Cement Plant in Cement Mill, Coal Mill, Raw Mill, Sugar Plant, Centrifugal Pumps, Steel Rolling Mills, Rubber Mixing Mills, Paper & pulp Industries & Various other Installations.

HYPO Oil Lubrication Systems are designed to suite individual Customer's requirement such as Flow of Oil in LPM, Degree of Filtration, with stand- by Pump, stand-by Filter, Oil Cooler & Class of automation.

HYPO Oil Lubrication Systems are available from Capacities 3 to 400 LPM at 12 Kg/Cm2 Pressure and even higher capacity & pressure on specific requirement.
